在 Fedora 38 上安装 Waydroid - 小辛的互联网作坊

Waydroid 介绍#

Waydroid 是一种基于容器的、能在常规的 GNU/Linux 系统上启动完整 Android 系统的方法。
Waydroid 不支持 NVIDIA 显卡（tegra 除外），需要运行在 Wayland 显示服务器下。
Waydroid 基于 LineageOS。

安装环境#

操作系统： Fedora 38 硬件配置： Intel ALder Lake I5-12500H 桌面环境： Gnome 44 Wayland 内核版本： 6.2.15-300.fc38.x86_64

安装#

Gnome 44 默认显示服务是 Wayland，如需切换注销选择显示服务登录。

命令行安装：

1
sudo dnf install waydroid
2

3
sudo systemctl enable --now waydroid-container

安装完成之后打开 waydroid 程序，在 OTA 文本框填入以下链接：

System OTA: https://ota.waydro.id/system Vendor OTA: https://ota.waydro.id/vendor

然后选择是否需要安装 OPENGAPPS ,点击下载按钮，等待镜像下载完成。镜像下载完成之后会自动安装，镜像初始化完成后好像 waydroid 会自动启动（这里我忘记了。。。）

Waydroid 命令与使用#

启动容器#

1
sudo waydroid container start

开启 Waydroid#

1
waydroid session start

全屏模式#

1
waydroid show-full-ui

多窗口模式#

1
# 开启
2
waydroid prop set persist.waydroid.multi_windows true
3
# 关闭
4
waydroid prop set persist.waydroid.multi_windows false
5

6
sudo systemctl restart waydroid-container

设置宽高度#

1
waydroid prop set persist.waydroid.width 0-9999 (int) Used for user to override desired resolution
2
waydroid prop set persist.waydroid.height 0-9999 (int) Used for user to override desired resolution

Other Waydroid Prop Options#

1
waydroid prop set persist.waydroid.cursor_on_subsurface true/false (bool) Workaround for showing the cursor in multi_windows mode on some compositors
2
waydroid prop set persist.waydroid.invert_colors true/false (bool) Swaps the color space from RGBA to BGRA (only works with our patched mutter so far)
3
waydroid prop set persist.waydroid.height_padding 0-9999 (int) Adjust height padding
4
waydroid prop set persist.waydroid.width_padding 0-9999 (int) Adjust width padding
5
waydroid prop set persist.waydroid.suspend true/false (bool, default: true on kernel 4.9 and later) Let the Waydroid container sleep (after the display timeout) when no apps are active
6
waydroid prop set persist.waydroid.uevent true/false (bool, default: false) Allow android direct access to hotplugged devices
7
Modify app behaviour
8
waydroid prop set persist.waydroid.fake_touch (string, 91 character limit) Comma separated list of package names for which mouse inputs should be interpreted as touch inputs instead. Supports wildcards with *. For example, set this to "com.rovio.*" to match all games by Rovio.
9
waydroid prop set persist.waydroid.fake_wifi (string, 91 character limit) Comma separated list of package names for which the system will always appear as if connected to wifi. Supports wildcards with *. For example, set this to "com.gameloft.*" to match all games by Gameloft.

安装应用#

1
waydroid app install xxx.apk
2

3
#or
4
usage: waydroid app [-h] {install,remove,launch,intent,list} ...
5

6
options:
7
  -h, --help            show this help message and exit
8

9
subaction:
10
  {install,remove,launch,intent,list}
11
    install             push a single package to the container and install it
12
    remove              remove single app package from the container
13
    launch              start single application
14
    intent              start single application
15
    list                list installed applications

安装自定义镜像#

将下载好的镜像放入目录：/usr/share/waydroid-extra/images/，然后运行：

1
waydroid init -f

使用 adb 连接调试#

使用命令：

1
waydroid status

显示如下：

1
Session:  RUNNING
2
Container:  RUNNING
3
Vendor type:  MAINLINE
4
IP address:  192.168.240.112
5
Session user:  encorexin(1000)
6
Wayland display:  wayland-0

然后使用命令链接：

1
abd connect <ip>:5555

设置共享目录#

1
 sudo mount --bind ~/Documents ~/.local/share/waydroid/data/media/0/Documents
2
 sudo mount --bind ~/Downloads ~/.local/share/waydroid/data/media/0/Download
3
 sudo mount --bind ~/Music ~/.local/share/waydroid/data/media/0/Music
4
 sudo mount --bind ~/Pictures ~/.local/share/waydroid/data/media/0/Pictures
5
 sudo mount --bind ~/Videos ~/.local/share/waydroid/data/media/0/Movies

使用脚本安装 Waydroid#

项目主页：https://github.com/ayasa520/waydroid_script

安装脚本#

1
sudo dnf install lzip
2

3
git clone https://github.com/ayasa520/waydroid_script.git
4

5
cd waydroid_script
6

7
sudo python3 -m pip install -r requirements.txt

使用#

1
sudo python3 main.py

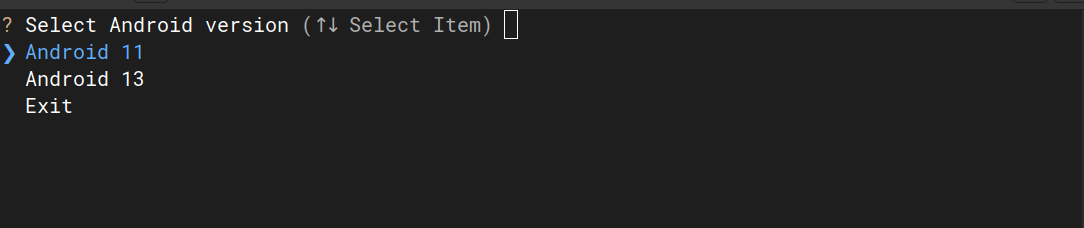

选择需要安装的 Android 版本

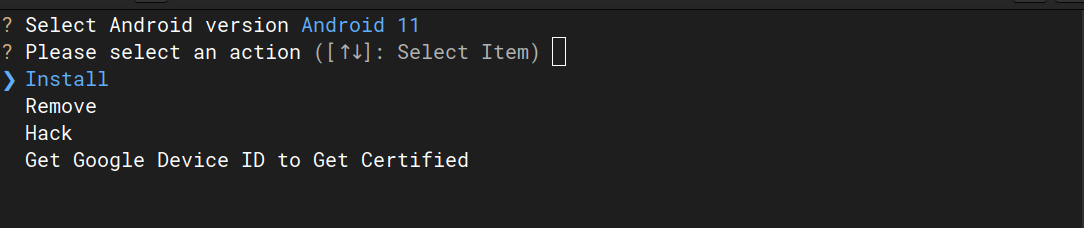

选择需要操作

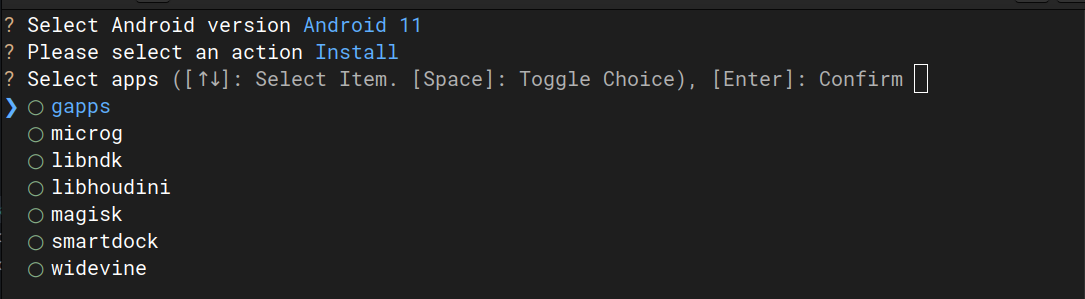

选择需要安装的应用

如果之前已经安装过 waydroid 了只需要安装后面的应用就行。

获取设备 id 并注册给谷歌#

使用命令进入 android shell：

1
sudo waydroid shell
2
ANDROID_RUNTIME_ROOT=/apex/com.android.runtime ANDROID_DATA=/data ANDROID_TZDATA_ROOT=/apex/com.android.tzdata ANDROID_I18N_ROOT=/apex/com.android.i18n sqlite3 /data/data/com.google.android.gsf/databases/gservices.db "select * from main where name = \"android_id\";"

然后会返回一段数据：android_id|* 星号为设备 id，是一串数字。

进入网址：https://www.google.com/android/uncertified，登录 Google 账号，将设备 id 复制到文本框内，点击注册等待半个小时然后重启 waydroid 就能在 waydroid 里面登录 Google Play 了。（需要将 waydroid 设备连接一次网络才能获取到设备 id，否则返回的内容为空。）

使用脚本获取：

1
sudo python3 main.py certified

至此，安装完成。

删除 Waydroid#

1
sudo dnf remove waydroid
2

3
sudo rm -rf /usr/bin/waydroid /var/lib/waydroid /home/.waydroid ~/waydroid ~/.share/waydroid ~/.local/share/applications/*aydroid* ~/.local/share/waydroid
